Thông tin chi tiết sản phẩm:
|
| Hình dạng: | Vòng | Độ tinh khiết: | > 99,99% |
|---|---|---|---|
| Kiểu: | Hợp kim | Tiêu chuẩn: | JIS, GB, DIN, BS, ASTM, AISI |
| Lớp: | Dòng 300 | Tối thiểu Gọi món: | 3000kg |

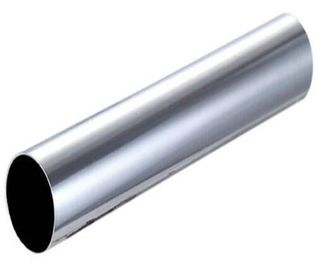

Hastelloy B-3 Seamless Pipes/Welded Pipes (UNS N10675, 2.4600, Alloy B-3)
Product Description
Inconel 625 Chemical composition
| Alloy | % | Ni | Cr | Mo | Nb+N | Fe | Al | Ti | C | Mn | Si | Cu | P | S |
| 625 | Min. | 58 | 20 | 8 | 3.15 | |||||||||
| Max. | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 625 Pysical properties
| Density | 8.4 g/cm³ |
| Melting point | 1290-1350ºC |
Inconel 625 Alloy m inimum mechanical properties in the room temperature
| Alloy state | Tensile strength Rm N/mm² |
Yield strength R P0. 2N/mm² |
Elongation A 5 % |
Brinell hardness HB |
| 625 | 760 | 345 | 30 | ≤220 |
Product form
We could produce Hastelloy B-2 seamless pipes, Hastelloy B2 seamless pipe, UNS N10665 seamless pipe/welded pipes, Alloy B-2, alloy b2 seamless pipe/welded pipes, 2.4617 seamless pipe/welded pipes from china
The type of Hastelloy B-2, UNS N10665, 2.4617 pipes that we could do is as follows: Forged pipes, forging pipes, coiled pipes, boiler pipes, heat exchanger pipes, Capillary pipes, Thermocouple pipes, Superheater pipes and reheater pipes, condenser pipe, finned pipes, furnace pipes, instrumentation pipes, Evaporator pipes, honed pipes, Precision pipes, High pressure pipes, hydraulic pipes and so on
The outer diameter of Hastelloy B-2, UNS N10665, 2.4617 pipes that we could do is from 0.4MM to 850MM, The thickness of Hastelloy B-2, UNS N10665, 2.4617 pipes that we could do is from 0.12MM to 100MM
We could do pickled and polish into bright surface as per the requirement of the clients, also for bright surface of Hastelloy B-2, UNS N10665, 2.4617 pipes, we could meet 2D finish. No. 4 Finish, No. 6 Finish, No. 7 Finish as per the requirement of the clients
We will do Positive material identification (PMI), Visual inspection, Dimensional inspection. Laser micrometer inspection, Destructive testing( includes tensile, hardness, bending, flattening, flare and metallurgical tests), ultrasonic testing and pressure testing, Liquid Penetrate testing as per the requirement of the clients to control the quality of Hastelloy B-2, UNS N10665, 2.4617 pipes
Please send us the size and quantity of Hastelloy B-2, UNS N10665, 2.4617 pipes that you need, we are glad to quote the best price for your side
Hastelloy b2
| Product name | seamless pipes, ERW pipe, DSAW pipes. |
| Standard | ASME B36.10M, API, ANSI,etc |
| Material | stainless steel: A312 TP304, A312 TP 304L, A312 TP316, A312 TP 316L, A312 TP 321,UNS32750,etc |
| Carbon steel: A106 GR B, A53 GR B | |
| Alloy steel: A335 P11, A335 P 22, A335 P 12, A335 P 5, A335 P 9, A335 P 91,etc | |
| Pipeline steel: API 5L GR B, API 5L X42, API 5L X46, API 5L X52, API 5L X60, API 5L X65, API 5L X70,etc |
|
| OD | 3/8" -100" , DN15-DN1200, 4-2500mm |
| Wall thickness | SCH5-SCHXXS (0.5-150mm) |
| Length | 5.8m, 6m, 11.8m, 12m, or as required |
| Surface | Annealing, pickling, polishing, bright, sand blast, hair line, brush, satin, snow sand, titanium, etc |
| Price term | Ex-Work, FOB, CNF, CFR, CIF, etc |
| Payment term | TT, L/C, Western Union |
| Export to | Singapore, USA, Morocco, Thailand,Australia,Viet Nam, Italy, Iran, India, Ukraine, Nigeria,Egypt,Mexico,Pakistan,Tunis, Lebanon,Syria,South Africa, Dubai, Iraq, South Korea, France, Spain, Turkey, Bulgaria, etc |
| Application | Stainless steel pipe widely used in petroleum, chemical industry, electric power,boiler, high temperature resistant, low temperature resistant, corrosion resistant. |
| The size of the pipes can be made according to clients requirements. | |
| Contacts | If you have any questions, please feel free to contact me. we are sure your inquiry or requirements will get prompt attention. |
| Packaging Details: | wooden case, pallet or as customers' requirement |
| Delivery Detail: | 14-30 days |
FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
